Drawings and Custom Parts:

• Note: I am not responsible for the fit and function of these drawings.
• Coming Soon

Next (Specifications)

Specifications:

• Vehicle:
• 2004 Jeep Grand Cherokee WJ Special Edition
• Engine: 4.7L V8 Power Tech MPI SOHC
• Color: Metallic Black
• Horsepower: 235 hp @ 4800 rpm
• Torque: 295 ft lb @ 3200 rpm
• Transmission: 5-Spd Automatic 545RFE
• Transfer Case: NV247 - "Quadra-Trac II"
• Front Axle: Dana 30/186MM
• Rear Axle: Dana 44/226MM 3.73 Ratio
• Bolt Pattern: 5 x 5
• Factory Tires: 225/75R16
• Current Tires: 245/75R17 BFGoodrich Mud Terrain
• Length x Width: 181.5" x 72.3"
• Max Towing: 6700 lbs

• Accessory Specifications:
• [CB Whip] FireStik FS-4BK
• [CB Radio Base] Uniden BEARCAT 980SSB
• [2m Whip] FireStik 2m-4 4ft
• [Ham Radio Base] Btech Mobile UV-50X2
• [Antenna Mounts] FireStik MK-184R
• [Antenna Springs] FireStik SS-3H

• Aftermarket Accessories:
• Custom Built Safari Roof Basket
• Custom Built Steel Front Bumper
• [Radio Head Unit] Pioneer AVH-X4800BS DVD CD Receiver 6.95" LCD

• Mechanical Upgrades:
• [Lift Kit] Fat Bob's Garage 2.5" Suspension Lift Kit
• [Bushings] Energy Suspension 9.8107R 5/8"
• [Tires] BFGoodrich Mud-Terrain T/A KM2 245/75R17 121Q
• [Instrument Cluster] Overland Style Mopar 56042919A
• [Gas Tank Skid Plate] Heavy-Duty Overland Edition Skid Plate

• Lighting Elements:
• [Headlamp Enclosure] Black Interior LED DRL Dual Halo Projector
• [Front Fog Lamps]
• [Stinger Light Bar]
• [Roof Light Bar]
• [Caution Light Bar]
• [Flasher Controller] Rigid Industries 40312
• [Interior Lighting] 41mm Festoon 24-SMD LED

Previous (Drawings and Custom Parts)      Next (Finished Photo Gallery)

Finished Photo Gallery:

Previous (Specifications)      Next (Custom Fabricated Parts)

Custom Fabricated Parts:

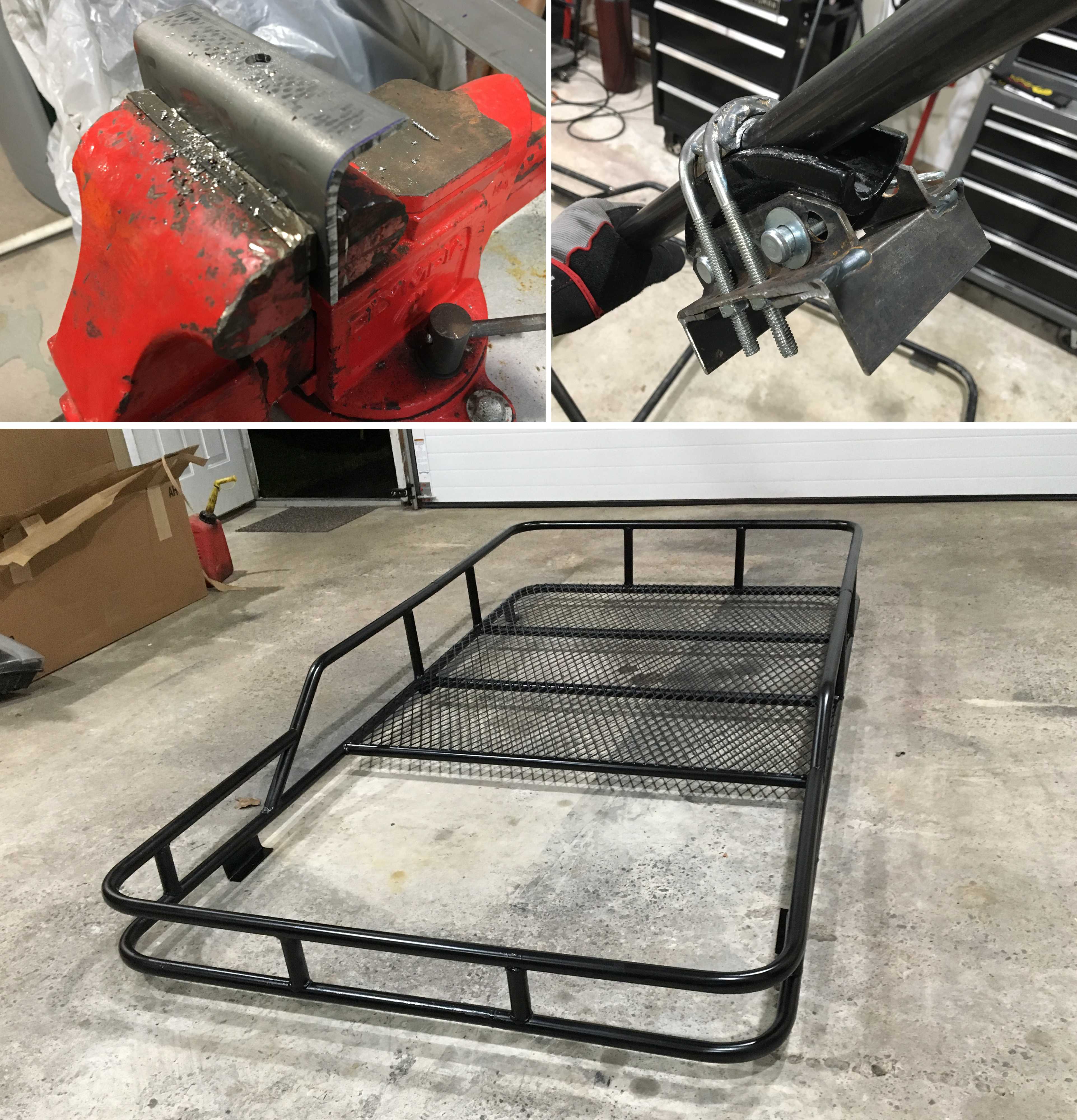

The off-the-shelf roof basket was too small to hold any more than a spare tire, and didn't reach far enough for proper mounting of off-road and hazard lights. I designed and built a safari-style roof rack using 3/4" schedule 40 pipe, 1/8" steel plate, and expanded steel for the decking. It came out extremely sturdy, it's absolute overkill (as is my custom).

Previous (Finished Photo Gallery)      Next (Accessory Installation)

Accessory Installation:

Coming Soon

Previous (Custom Fabricated Parts)      Next (Mechanical)

Mechanical:

Coming Soon: Lift Kit, Tires/Wheels, Gas Tank Skid Plate (not pictured)

Previous (Accessory Installation)     Next (Electrical)

Electrical:

Coming Soon: Lighting upgrades, radio wiring, 12V aux harness, exterior off-road and hazard lights.

Previous (Mechanical)
